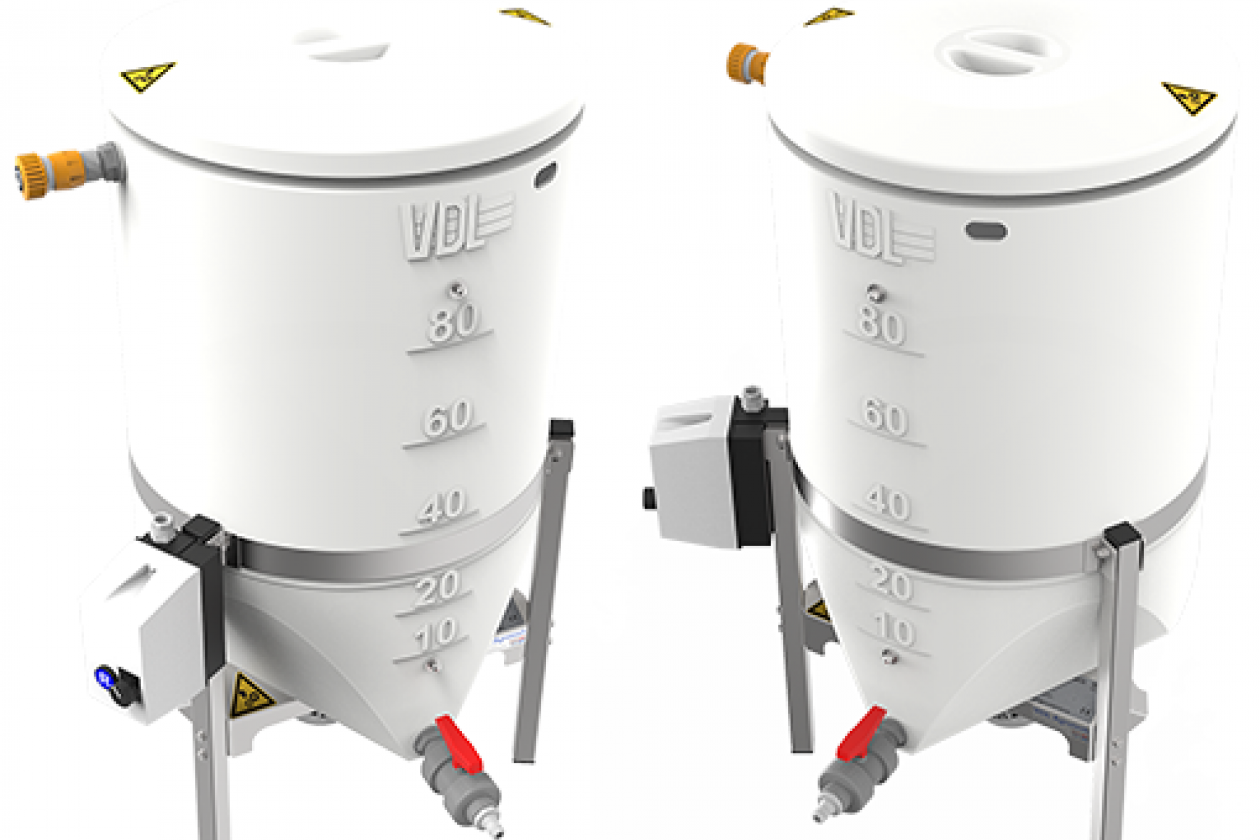

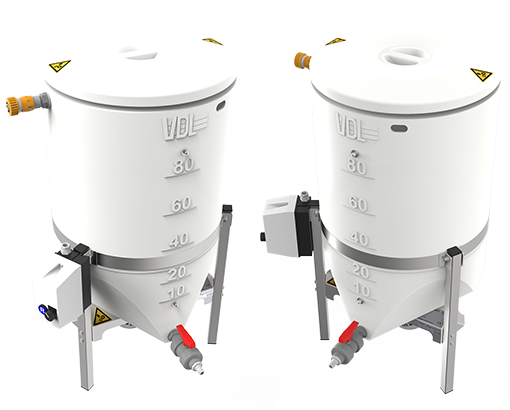

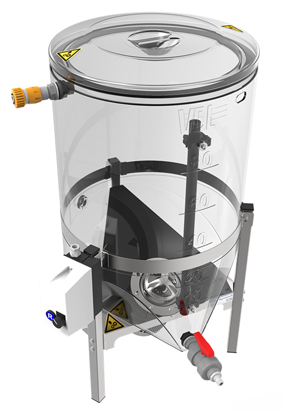

New! Mixing tank 100 liter, for mixing additives

A new mixing tank has been developed to mix additives homogeneously with drinking water. The maximum capacity of the mixing tank is 100 liter. A dosing pump sucks up the homogeneously mixed solution via the suction hose and doses it accurately into the drinking system.

Advantages:

• The mixing tank is equipped with a powerful mixing motor to dissolve additives quick, hygienic and properly and to keep it in solution as well
• The unique funnel-shaped bottom makes sure that the mixture is completely sucked up by the dosing pump
• A mounted guide tube with snap fastening ensures that the suction hose is held securely in place
• The mixing tank is supplied as standard with a control box equipped with an integrated mixing and interval time to automatically periodically mix additives to prevent segregation
• Easy cleaning by means of a residue-free outflow opening with ball valve
• Equipped with a side connection for the water supply and suction hose throughput
• Durable due to fully stainless steel frame and mixer and PE synthetic tank
• Delivery including cover, thermical protection and a connecting cable with plug

Technical data:

• Power: 0.25kW
• Voltage: 230V, 1 Phase, 50Hz
• Current: 1.7A

Art.nr.
270480013

Description
Mixing tank 100 liter, for mixing additives with drinking water, 0,25kW, 230V/50Hz

270480013 Mixing tank 100 liters, for mixing additives with drinking water, 0,25kW, 230V/50Hz
